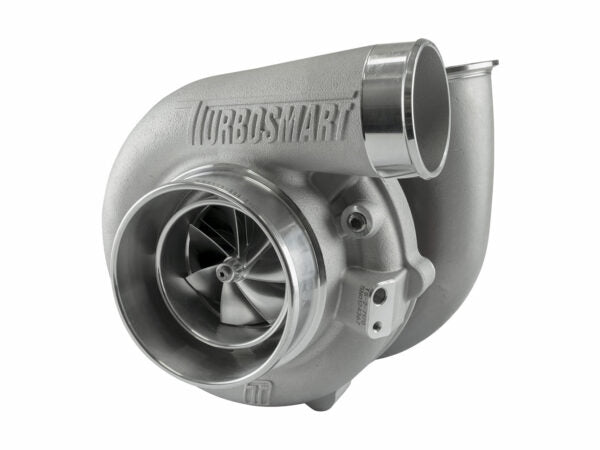

Turbosmart TS-2 Turbocharger (Water Cooled) 7170 V-Band 1.07AR Externally Wastegated

TS-2 Turbocharger (Water Cooled) 7170 V-Band 1.07AR Externally Wastegated

Smaller. Lighter. Faster.
The Turbosmart TS-2 Turbocharger range is engineered using advanced materials, precision manufacturing, and high-efficiency aerodynamics to deliver extreme horsepower with rapid spool and long-term reliability.

Featuring a dual oil & water cooling system, the TS-2 is designed for high-boost, high-heat environments—reducing thermal stress and maintaining consistent performance under demanding conditions.

Built with a complete engine system approach, it maximises airflow and reduces backpressure for faster boost response, stronger mid-range, and sustained top-end power.

⚡ PERFORMANCE FEATURES

• Oil & Water Cooled
  Enhanced thermal control for high-performance street and motorsport applications
• Ultra-Fast Spool Response
  Proprietary dual ceramic bearing system with ultra-low rotating mass
• High Efficiency Airflow
  7+7 splitter compressor wheel design delivers increased flow and efficiency
• Extreme Heat Durability
  T14 Inconel turbine wheel built for high exhaust gas temperatures
• Lightweight & Strong Construction
  310S stainless steel turbine housing with aluminium compressor cover
• Optimised Flow Performance
  CFD-designed housings maximise A/R efficiency and turbo output
• Precision Balanced
  VSR speed balanced with integrated iron backplate for high RPM reliability

📦 COMPLETE INSTALLATION KIT

Every Turbosmart turbocharger includes everything required for installation:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings
• Water feed & return fittings

🔩 TS-2 Turbocharger (Water Cooled) 7170 V-Band 1.07AR Externally Wastegated TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 71mm
• Turbine Inlet: 2.25” V-Band
• Turbine Exducer: 70mm
• Turbine A/R: 1.07
• Turbine Outlet: 3.00” V-Band
• Weight: 6.06kg (13.3lbs)
• Power Rating: 880–1040HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• V-Band, T3 & T4 flange configurations
• Multiple A/R options
• Internal & external wastegate setups
• Reverse rotation (selected sizes)

🚀 IDEAL FOR

• 900–1000+ HP builds
• High boost street & race setups
• Performance applications requiring improved cooling stability
