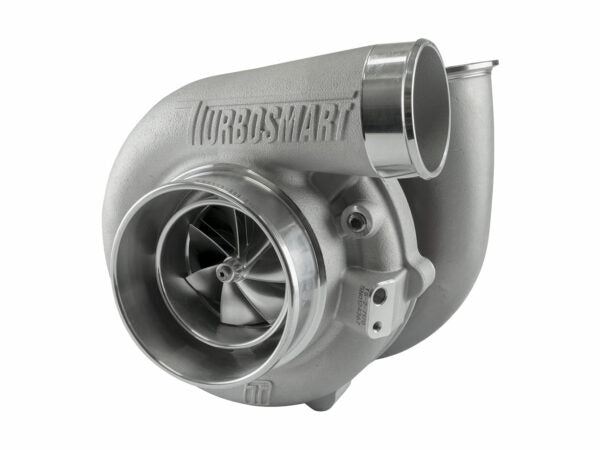

Turbosmart TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band 1.07AR Externally Wastegated

TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band 1.07AR Externally Wastegated

Smaller. Lighter. Faster.
The Turbosmart TS-2 Turbocharger range is engineered using advanced materials, precision manufacturing, and modern aerodynamic design to deliver extreme horsepower, fast spool response, and long-term reliability.

Designed for both motorsport and high-performance street applications, the TS-2 features a dual oil and water cooling system to maintain stable performance under high heat and boost conditions.

Built with a complete engine system approach, it reduces backpressure while maximising airflow efficiency—resulting in quicker boost response, stronger mid-range torque, and sustained top-end power.

⚡ TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band 1.07AR Externally Wastegated PERFORMANCE FEATURES

• Oil & Water Cooled Design
  Improved thermal control for high-boost and motorsport applications
• Ultra-Fast Spool Response
  Dual ceramic bearing system with ultra-low rotating mass for rapid transient response
• High Efficiency Compressor Wheel
  7+7 splitter design improves airflow and efficiency at lower shaft speeds
• Extreme Heat Durability
  T14 Inconel turbine wheel engineered for high exhaust gas temperature resistance
• Lightweight & Durable Construction
  310S stainless steel investment cast turbine housing with aluminium compressor cover
• Optimised Flow Engineering
  CFD-designed housings maximise A/R efficiency and overall turbo performance
• Precision Balanced Reliability
  VSR speed balanced with integrated iron backplate for high RPM stability

📦 COMPLETE INSTALLATION KIT

Every Turbosmart turbocharger includes everything required for installation:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings
• Water feed & return fittings

🔩 TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: 2.25” V-Band
• Turbine Exducer: 70mm
• Turbine A/R: 1.07
• Turbine Outlet: 3.00” V-Band
• Weight: 6.06kg (13.3lbs)
• Power Rating: 850–990HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• T3, T4 & V-Band configurations
• Multiple A/R options
• Internal & external wastegate setups
• Reverse rotation (selected sizes)

🚀 IDEAL FOR

• 850–990HP performance builds
• High boost street & race applications
• Motorsport setups requiring strong thermal control and fast spool
