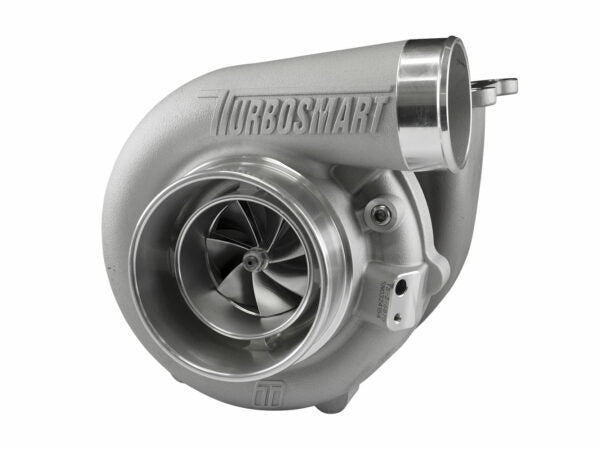

Turbosmart TS-2 Turbocharger (Water Cooled) 6466 T3 1.10AR Externally Wastegated

TS-2 Turbocharger (Water Cooled) 6466 T3 1.10AR Externally Wastegated

Smaller, lighter, and faster — Turbosmart’s turbocharger series is engineered using advanced materials, precision design, and modern manufacturing techniques to deliver a high-performance range built for motorsport and performance enthusiasts alike.

Every Turbosmart turbocharger is supplied as a complete installation package, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings, ensuring a simple and complete install solution.

TS-2 Series – Oil & Water Cooled Turbocharger

The TS-2 series combines oil and water cooling with a lightweight investment-cast turbine housing and a proprietary bearing and shaft system designed for exceptional transient response and durability.

A low-mass rotating assembly paired with aggressive compressor aerodynamics delivers fast spool characteristics at lower shaft speeds, while maintaining strong high-load performance and consistent airflow.

Built with a full engine systems approach, the TS-2 focuses on reducing back pressure and maximising turbine efficiency, delivering a turbocharger that is smaller, lighter, and faster responding than conventional alternatives.

Available Options

• TS-1 oil-cooled turbochargers
• TS-2 oil & water-cooled turbochargers
• V-Band, T3 and T4 flange configurations
• Reverse rotation (selected sizes)
• Multiple A/R housing options
• Internal and external wastegate compatibility

TS-2 Turbocharger (Water Cooled) 6466 T3 1.10AR Externally Wastegated Key Features

• Exceptional transient response
• 7+7 splitter compressor wheel aerodynamics
• Lightweight 310S stainless steel investment-cast turbine housing
• Lightweight aluminium compressor cover
• CFD-optimised housings for improved flow and efficiency
• T14 Inconel turbine wheel for high EGT resistance
• VSR high-speed balanced rotating assembly
• Proprietary dual ceramic bearing system
• Integrated iron backplate centre housing

Specifications

• Compressor Inlet: 4” / 101.6mm
• Compressor Inducer: 64mm
• Turbine Inlet: T3 Flange
• Turbine Exducer: 66mm
• Turbine A/R: 1.10
• Turbine Outlet: V-Band (3.00”)
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 750–930HP
