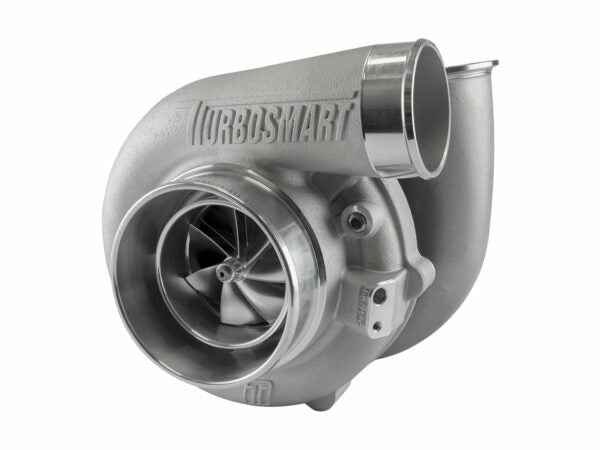

Turbosmart TS-1 Turbocharger 8280 V-Band 0.96AR Externally Wastegated

Smaller, Lighter and Faster – the Turbosmart TS-1 turbocharger series is engineered using advanced materials, CFD-designed housings and precision manufacturing to deliver extreme power with unmatched response for motorsport and high-performance applications.

Each unit is supplied as a complete installation package, including weld flanges, V-band clamps, gaskets, oil feed and drain lines, ensuring a straightforward fitment solution straight out of the box.

The TS-1 range features a lightweight oil-cooled design with investment-cast turbine housings and a proprietary bearing and shaft assembly engineered for ultra-low rotational mass. Combined with aggressive 7+7 splitter compressor aerodynamics, the result is rapid spool, exceptional transient response and strong top-end power delivery.

A high-performance turbine wheel and optimised A/R design ensure reduced back pressure, sustained high-flow efficiency and consistent power under extreme load conditions.

TS-1 Turbocharger 8280 V-Band 0.96AR Externally Wastegated Key Features

• Unparalleled transient response and spool characteristics
• 7+7 2618 aluminium compressor wheel design
• Lightweight 310s stainless steel investment-cast turbine housing
• Aluminium compressor cover for reduced mass
• CFD-optimised housing for improved flow and efficiency
• 713C Inconel turbine wheel for extreme EGT resistance
• VSR high-speed balancing
• Dual ceramic bearing system for durability and response
• Integrated iron backplate centre housing design

Specifications

• Compressor inlet: 4" (101.6mm)
• Compressor inducer: 82mm
• Turbine inlet: T4
• Turbine exducer: 80mm
• Turbine A/R: 0.96
• Turbine outlet: V-band (3.50")
• Weight: 9.63kg (21.23lbs)
• Power range: 1300–1450HP

Available Options

• TS-1 oil-cooled turbochargers
• TS-2 oil & water-cooled turbochargers
• T3, T4 and V-band configurations
• Selectable reverse rotation models
• Multiple A/R housing options
• Internal and external wastegate compatibility
