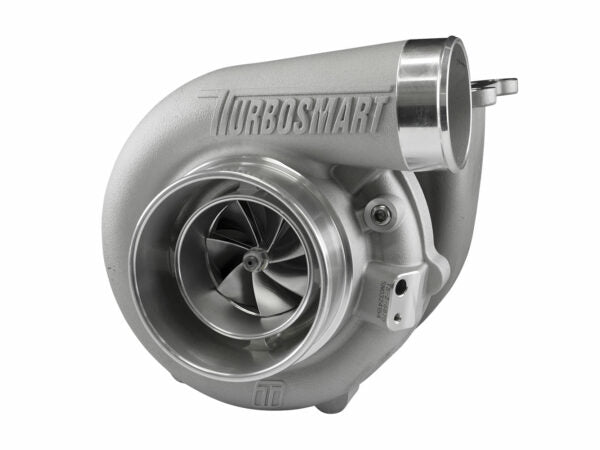

Turbosmart TS-1 Turbocharger 8280 T4 1.24AR Externally Wastegated

TS-1 Turbocharger 8280 T4 1.24AR Externally Wastegated

The TS-1 series are oil-cooled turbochargers featuring lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination designed to deliver ultra-low rotating mass. This provides exceptional transient response and performance you never knew possible, backed by the quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass bearing system is matched with aggressive compressor aerodynamics to ensure strong performance at lower shaft speeds.

Available In

• TS-1 oil-cooled turbochargers
• TS-2 oil and water-cooled turbochargers
• V-band, T3 and T4 flange options
• Reverse rotation (selected sizes)
• Various A/R options
• Internal and external wastegate configurations

TS-1 Turbocharger 8280 T4 1.24AR Externally Wastegated Features

• Unparalleled transient response
• Aggressive 7+7 splitter wheel aerodynamics
• Lightweight 310s stainless steel investment-cast turbine housing
• Lightweight aluminium compressor cover
• CFD-driven housing design for optimal A/R and flow
• T14 Inconel turbine wheel for extreme EGT resistance
• VSR high-speed balancing
• Proprietary dual ceramic bearing system
• Integrated iron backplate centre housing

Specifications

• Compressor inlet: 4" (101.6mm)
• Compressor inducer: 82mm
• Turbine inlet: T4
• Turbine exducer: 80mm
• Turbine A/R: 1.24
• Turbine outlet: V-band (3.50")
• Weight: 9.63kg (21.23lbs)
• Horsepower rating: 1300–1450HP
