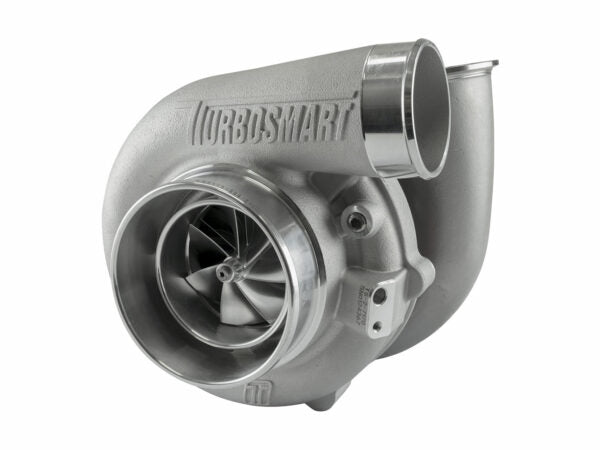

Turbosmart TS-1 Turbocharger 7170 V-Band 1.07AR Externally Wastegated

TS-1 Turbocharger 7170 V-Band 1.07AR Externally Wastegated

Turbosmart TS Series Turbochargers – Smaller, Lighter, Faster

Smaller, lighter, and faster — Turbosmart’s turbocharger series is engineered using advanced materials, precision design, and modern manufacturing techniques to deliver a high-performance range built for motorsport and performance enthusiasts alike.

Every Turbosmart turbocharger is supplied as a complete installation package, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, ensuring a streamlined installation process.

TS-1 Series – Oil Cooled Turbocharger

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft system designed to deliver exceptional transient response.

A low-mass rotating assembly combined with aggressive compressor aerodynamics delivers strong performance at lower shaft speeds, while a matched turbine wheel maintains airflow and power under high load conditions.

Designed with a full engine systems approach, the TS-1 focuses on reducing back pressure and maximising turbine efficiency, delivering a turbocharger that is smaller, lighter, and faster responding than conventional alternatives.

Available Options

• TS-1 oil-cooled turbochargers
• TS-2 oil & water-cooled turbochargers
• V-Band, T3 and T4 flange configurations
• Reverse rotation (selected sizes)
• Multiple A/R housing options
• Internal and external wastegate compatibility

TS-1 Turbocharger 7170 V-Band 1.07AR Externally Wastegated Key Features

• Unparalleled transient response
• 7+7 splitter compressor wheel aerodynamics
• Lightweight 310S stainless steel investment-cast turbine housing
• Lightweight aluminium compressor cover
• CFD-optimised housings for improved flow and A/R efficiency
• T14 Inconel turbine wheel for extreme EGT resistance
• VSR high-speed balanced rotating assembly
• Proprietary dual ceramic bearing system
• Integrated iron backplate centre housing

Specifications

• Compressor Inlet: 4” / 101.6mm
• Compressor Inducer: 71mm
• Turbine Inlet: V-Band (2.25”)
• Turbine Exducer: 70mm
• Turbine A/R: 1.07
• Turbine Outlet: V-Band (3.00”)
• Weight: 6.43kg / 14.17lbs
• Horsepower Rating: 850–1040HP
