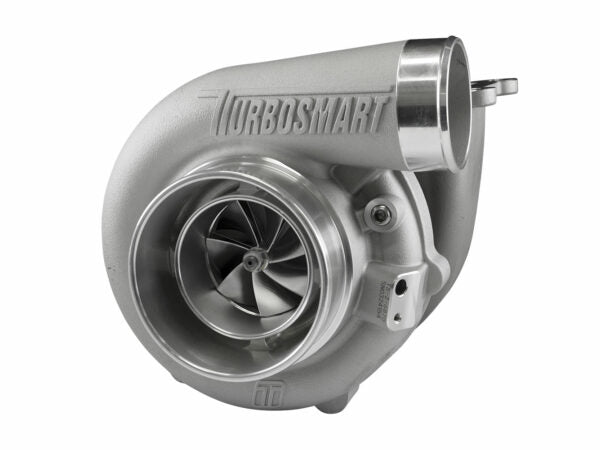

Turbosmart TS-1 Turbocharger 6870 T4 0.96AR Externally Wastegated

TS-1 Turbocharger 6870 T4 0.96AR Externally Wastegated

Smaller. Lighter. Faster.
The Turbosmart TS-1 Turbocharger range is engineered using advanced materials, precision manufacturing, and modern aerodynamic design to deliver high horsepower, fast spool response, and proven reliability for serious performance applications.

Built with a complete engine system approach, the TS-1 reduces backpressure and maximises airflow efficiency—resulting in faster boost response, stronger mid-range torque, and sustained top-end power.

Designed for high-output street builds and motorsport applications targeting 900–1100HP.

⚡ TS-1 Turbocharger 6870 T4 0.96AR Externally Wastegated PERFORMANCE FEATURES

• Ultra-Fast Spool & Response
  Dual ceramic bearing system with ultra-low rotating mass for exceptional transient response
• High Efficiency Airflow Design
  7+7 splitter compressor wheel increases airflow while maintaining efficiency at lower shaft speeds
• Extreme Heat Capability
  T14 Inconel turbine wheel engineered for high exhaust gas temperature resistance under load
• Heavy-Duty Construction
  310S stainless steel investment cast turbine housing with aluminium compressor cover
• Optimised Flow Engineering
  CFD-designed housings maximise A/R efficiency and turbo performance
• Precision Balanced Reliability
  VSR speed balanced with integrated iron backplate for high RPM stability

📦 INSTALLATION READY

Every Turbosmart turbocharger includes everything required for installation:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings

🔩 TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: T4 Flange
• Turbine Exducer: 70mm
• Turbine A/R: 0.96
• Turbine Outlet: 3.50” V-Band
• Weight: 9.63kg (20.23lbs)
• Power Rating: 900–1100HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• T3, T4 & V-Band configurations
• Multiple A/R options
• Internal & external wastegate setups
• Reverse rotation (selected sizes)

🚀 IDEAL FOR

• 900–1100HP performance builds
• High boost street & race applications
• Motorsport setups requiring high flow and sustained power
