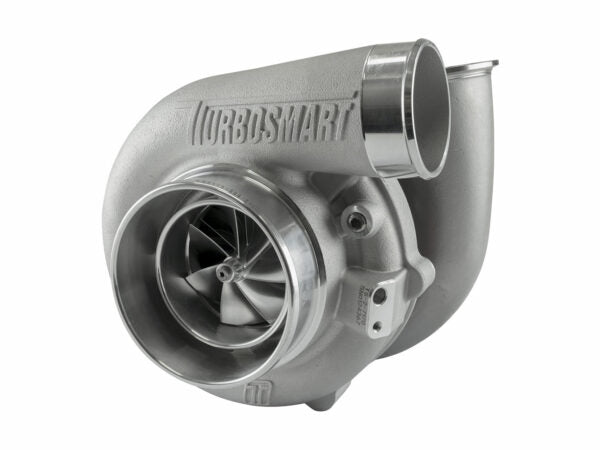

Turbosmart TS-1 Turbocharger 6870 (Kompact) V-Band 0.96AR Externally Wastegated

TS-1 Turbocharger 6870 (Kompact) V-Band 0.96AR Externally Wastegated

Smaller. Lighter. Faster.
The Turbosmart TS-1 Turbocharger range is built using advanced materials, precision engineering, and modern aerodynamic design to deliver high horsepower, fast spool, and proven reliability.

Designed with a complete engine system approach, the TS-1 maximises airflow while reducing backpressure—resulting in quicker boost response, stronger mid-range performance, and consistent top-end power.

Ideal for high-performance street builds and motorsport applications targeting 850–990HP.

⚡ TS-1 Turbocharger 6870 (Kompact) V-Band 0.96AR Externally Wastegated PERFORMANCE FEATURES

• Rapid Spool & Response
  Proprietary dual ceramic bearing system with ultra-low rotating mass delivers exceptional transient response
• High Efficiency Airflow
  7+7 splitter compressor wheel design improves airflow and maintains efficiency at lower shaft speeds
• Extreme Heat Durability
  T14 Inconel turbine wheel built to withstand high exhaust gas temperatures under load
• Lightweight, High-Strength Construction
  310S stainless steel investment cast turbine housing paired with an aluminium compressor cover
• Optimised Flow Design
  CFD-developed housings maximise A/R efficiency and turbo performance
• Precision Balanced
  VSR speed balanced with integrated iron backplate for reliability at high RPM

📦 INSTALLATION READY

Every Turbosmart turbocharger includes everything required for installation:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings

🔩 TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: 3.00” V-Band
• Turbine Exducer: 70mm
• Turbine A/R: 0.96
• Turbine Outlet: 3.00” V-Band
• Weight: 6.43kg (14.17lbs)
• Power Rating: 850–990HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• V-Band, T3 & T4 flange configurations
• Multiple A/R options
• Internal & external wastegate setups
• Reverse rotation (selected sizes)

🚀 IDEAL FOR

• 850–990HP street & track builds
• High boost, high airflow setups
• Performance enthusiasts chasing fast spool + big power
