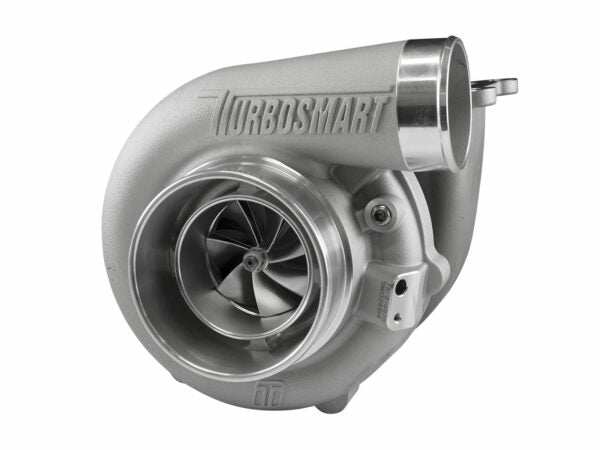

Turbosmart TS-1 Turbocharger 6870 (Kompact) T4 0.82AR Externally Wastegated

TS-1 Turbocharger 6870 (Kompact) T4 0.82AR Externally Wastegated

The Turbosmart TS-1 Turbocharger range is engineered using advanced materials, precision manufacturing, and modern aerodynamic design to deliver high horsepower, rapid spool, and proven reliability.

Built with a complete engine system approach, the TS-1 reduces backpressure while maximising airflow efficiency—resulting in faster boost response, strong mid-range torque, and consistent top-end power.

Ideal for high-performance street builds and motorsport applications targeting 850–990HP.

⚡PERFORMANCE FEATURES

• Fast Spool & Sharp Response
  Proprietary dual ceramic bearing system with ultra-low rotating mass delivers outstanding transient response
• High Efficiency Airflow
  7+7 splitter compressor wheel design improves airflow and maintains efficiency at lower shaft speeds
• Extreme Heat Durability
  T14 Inconel turbine wheel designed to handle high exhaust gas temperatures under load
• Lightweight & Strong Construction
  310S stainless steel investment cast turbine housing with aluminium compressor cover
• Optimised Flow Design
  CFD-developed housings maximise A/R efficiency and turbo performance
• Precision Balanced for Reliability
  VSR speed balanced with integrated iron backplate for high RPM stability

📦 INSTALLATION READY

Every Turbosmart turbocharger includes everything required for installation:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings

🔩 TS-1 Turbocharger 6870 (Kompact) T4 0.82AR Externally Wastegated TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: T4
• Turbine Exducer: 70mm
• Turbine A/R: 0.82
• Turbine Outlet: 3.00” V-Band
• Weight: 6.86kg (15.1lbs)
• Power Rating: 850–990HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• T3, T4 & V-Band configurations
• Multiple A/R options
• Internal & external wastegate setups
• Reverse rotation (selected sizes)

🚀 IDEAL FOR

• 850–990HP performance builds
• Fast spool street & track setups
• High boost, high airflow applications
