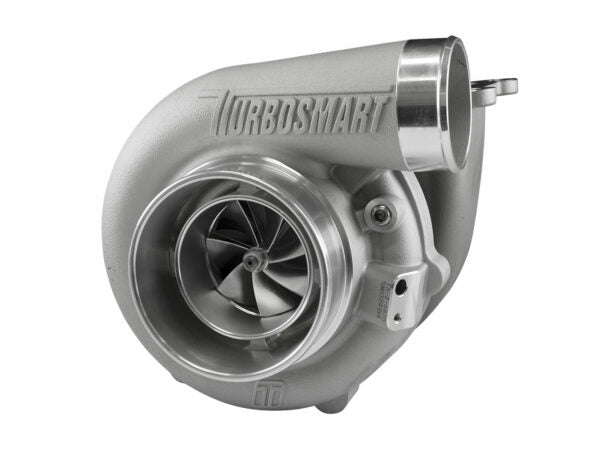

Turbosmart TS-1 Turbocharger 6870 (Kompact) D4 1.00AR Externally Wastegated

The TS-1 Turbocharger 6870 range is built using advanced materials, precision engineering, and cutting-edge aerodynamics to deliver serious power, fast spool, and long-term reliability.

Designed with a complete engine system approach, the TS-1 reduces backpressure and maximises airflow efficiency—giving you quicker boost response, stronger mid-range, and sustained top-end performance.

Ideal for high-performance street builds and motorsport applications targeting 850–990HP.

⚡ TS-1 Turbocharger 6870 PERFORMANCE FEATURES

• Unmatched Transient Response
  Proprietary dual ceramic bearing system with ultra-low rotating mass for rapid spool and throttle response
• High Efficiency Compressor Design
  Aggressive 7+7 splitter wheel increases airflow and maintains efficiency at lower shaft speeds
• Extreme Heat Durability
  T14 Inconel turbine wheel built to withstand high exhaust gas temperatures under load
• Lightweight, High-Strength Construction
  310S stainless steel investment cast turbine housing with aluminium compressor cover
• Optimised Flow Performance
  CFD-designed housings improve A/R efficiency and overall turbo output
• Balanced for Reliability
  VSR speed balanced with integrated iron backplate for durability at high RPM

📦 INSTALLATION READY

Every Turbosmart turbocharger includes everything required for install:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings

🔩 TECHNICAL SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: T4 Divided
• Turbine Exducer: 70mm
• Turbine A/R: 1.00
• Turbine Outlet: 3.00” V-Band
• Weight: 6.86kg (15.1lbs)
• Power Rating: 850–990HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• T3, T4 & V-Band configurations
• Multiple A/R options
• Internal & external wastegate options
• Reverse rotation (selected models)

🚀 IDEAL FOR

• 850–990HP performance builds
• Track cars & motorsport setups
• High boost, high airflow applications
