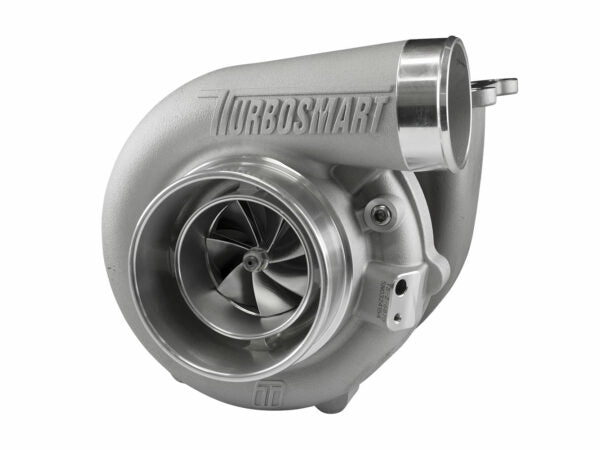

Turbosmart TS-1 Turbocharger 6870 Externally Wastegated

TS-1 Turbocharger 6870(Kompact) D4 0.84AR Externally Wastegated

Smaller. Lighter. Faster.
The Turbosmart TS-1 turbocharger range is engineered using advanced materials, cutting-edge design, and precision manufacturing to deliver exceptional performance for both motorsport and street applications.

Designed with a complete engine system approach, the TS-1 maximises power through reduced backpressure and high-efficiency turbine design—while remaining compact, lightweight, and incredibly responsive.

⚙️  TS-1 Turbocharger 6870 FEATURES

• Ultra-fast transient response with proprietary dual ceramic bearing system
• Lightweight 310S stainless steel investment cast turbine housing
• Aggressive 7+7 splitter compressor wheel aerodynamics
• T14 Inconel turbine wheel for extreme EGT durability
• CFD-optimised housings for maximum flow efficiency
• VSR speed balanced for reliability and performance
• Lightweight aluminium compressor cover
• Integrated iron backplate for added strength

📦 WHAT’S INCLUDED

Every Turbosmart turbocharger comes complete with:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed & drain fittings

🔩 TS-1 Turbocharger 6870 SPECIFICATIONS

• Compressor Inlet: 4” (101.6mm)
• Compressor Inducer: 68mm
• Turbine Inlet: T4 Divided
• Turbine Exducer: 70mm
• Turbine A/R: 0.84
• Turbine Outlet: 3.00” V-Band
• Weight: 6.86kg (15.1lbs)
• Power Rating: 850–990HP

🔀 AVAILABLE OPTIONS

• TS-1 (Oil Cooled)
• TS-2 (Oil & Water Cooled)
• T3 / T4 / V-Band configurations
• Multiple A/R sizes
• Internal & External Wastegate options
• Reverse rotation (selected models)
