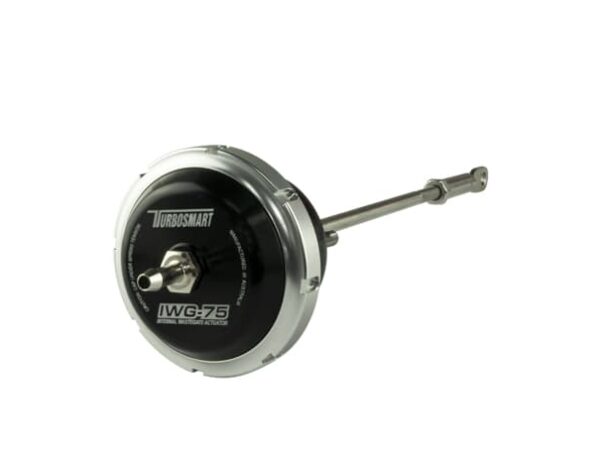

Turbosmart IWG75 2015 Ford Mustang 2.3L EcoBoost 12 PSI

IWG75 2015 Ford Mustang 2.3L EcoBoost 12 PSI

Turbosmart IWG75 Upgraded Wastegate Actuators are engineered to deliver maximum boost response from your factory frame turbocharger. With an increased “working ratio” over OEM actuators, the IWG75 range improves boost control and responsiveness across the entire RPM range.

This enhanced performance is achieved through a larger diaphragm surface area and revised internal spring design, providing greater leverage against boost pressure and exhaust backpressure while maintaining fast, consistent response.

Running the same base pressure as factory results in earlier peak boost, a broader torque curve, and improved boost hold into higher RPM. Higher base pressure options can further enhance performance, though ECU tuning and recalibration may be required.

⚙️ Available Options

• 7 PSI – TS-0622-8072
• 10 PSI – TS-0622-8102
• 12 PSI – TS-0622-8122

Turbo Upgrade Option:

• 14 PSI (Suit Turbonetics / Precision NX2 Upgrade) – TS-0622-1003

✅ IWG75 2015 Ford Mustang 2.3L EcoBoost 12 PSI Features

• Proprietary Silicon Nomex Diaphragm
• Optional Spring Range: 3 PSI – 26 PSI
• High-Grade Billet Aluminium Construction
• Stainless Steel Rods & Clevis
• Turbosmart Locking Collar System

📌 Notes

• 7 PSI version is a direct factory replacement
• Higher pressure variants require ECU tuning/calibration
